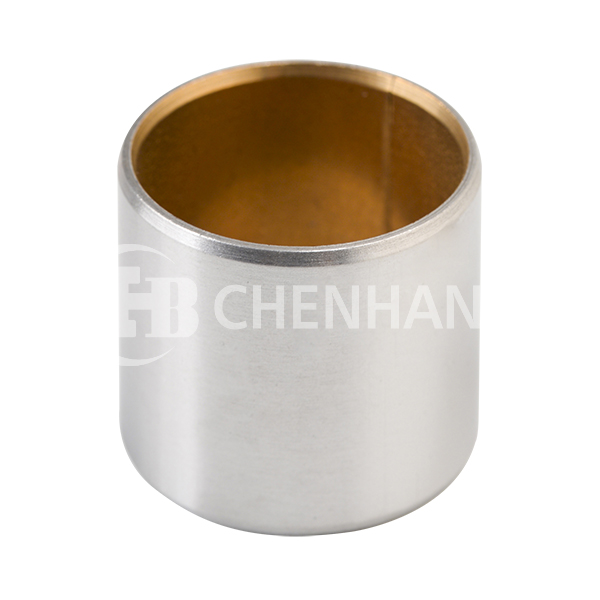

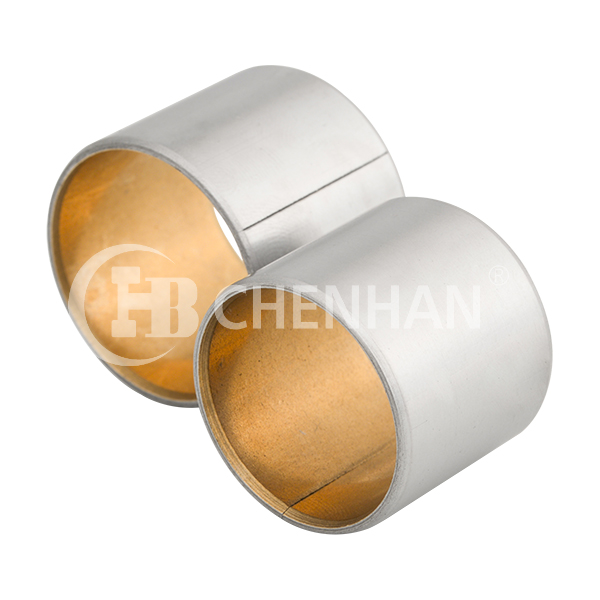

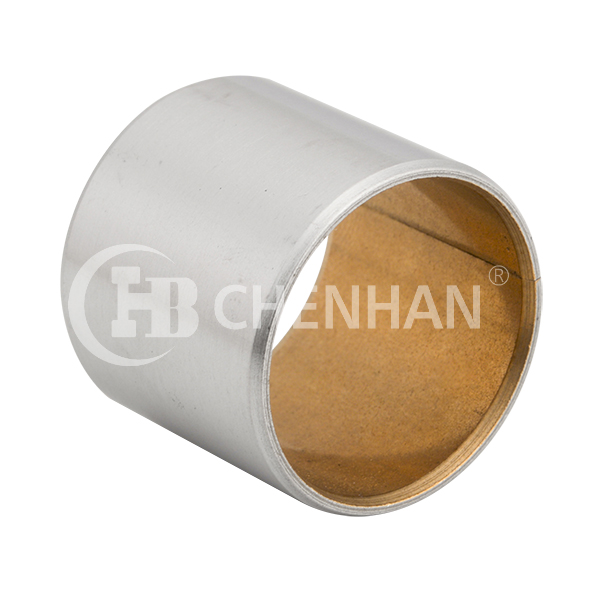

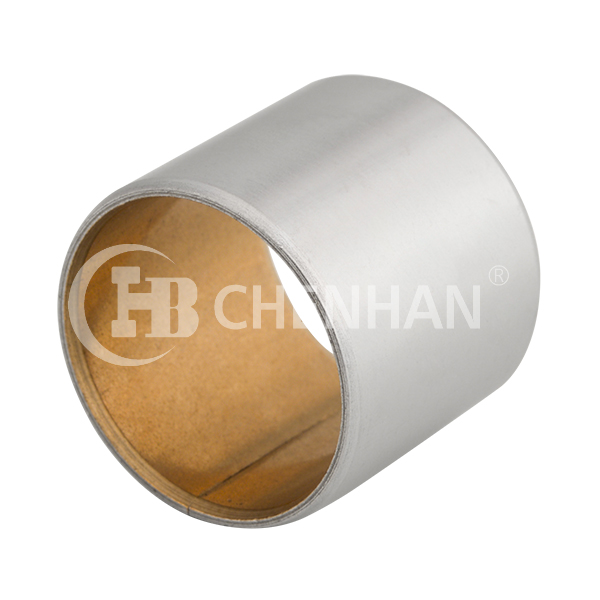

CHB700 Bimetal bearing
The CHB700 bimetal bearing is a product based on a steel plate with a surface sintered CuPb30 material. Can be used as high-speed, rocker bushings; oil and mercury side friction plates.
Size download
| Dynamic load | 120P N/mm2 | Maximum temperature | Grease lubrication | 150°C | |
| Line speed | Grease lubrication | 2.5Vm/s | Fluid lubrication | 250°C | |
| Maximum PV value | 2.8N/mm2. m/s | Matching shaft diameter | Hardness | ≥ 45 | |
| Coefficient of friction | 0.05~0.15 | Roughness | 0.16~0.63 | ||
| Line speed | Fluid lubrication | 10 | Alloy layer hardness | 40~60 | |
| Maximum PV value | 10 | Thermal Conductivity | 60W/mk | ||
| Coefficient of friction | 0.04~0.12 | Coefficient of linear expansion (axial) | 19×10-6/K | ||
| Nominal thickness Norminal Thiickness |
Inner hole non-machinable thickness tolerance Tolerances of Series B (non-machinable) |
Machinable thickness tolerance of inner hole Tolerances of Series C (non-machinable) |
| 1.0 | -0.025 | +0.25 +0.15 |
| 2.0 | -0.030 | +0.25 +0.15 |
| 2.5 | -0.035 | +0.25 +0.15 |
| 3.0 | -0.040 | +0.30 +0.15 |
| 3.5 | -0.045 | +0.30 +0.15 |
| 3.5 | -0.050 | +0.30 +0.15 |
Construction Machinery: Chassis of supporting wheels, tow wheel bushings, tensioning wheel bushings; Automotive industry: balance shaft bushings, steel pin bushings, steering knuckle bushings, connecting rod bushings, etc.
