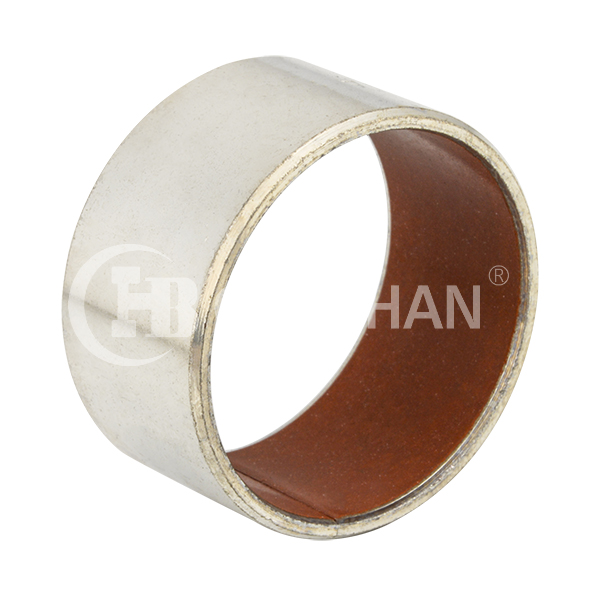

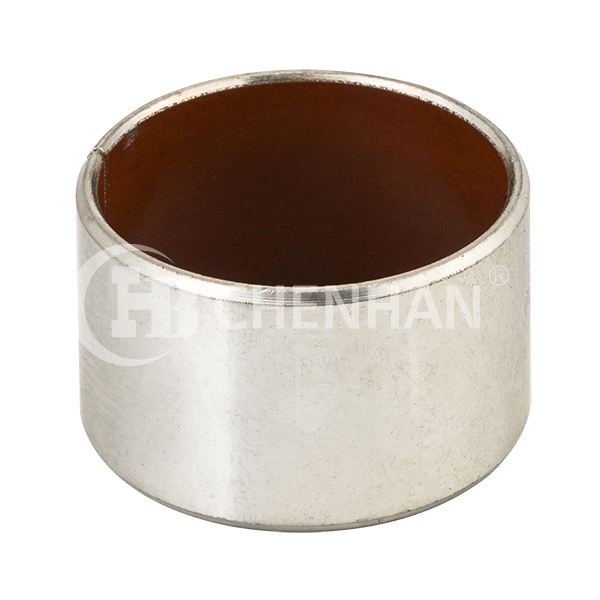

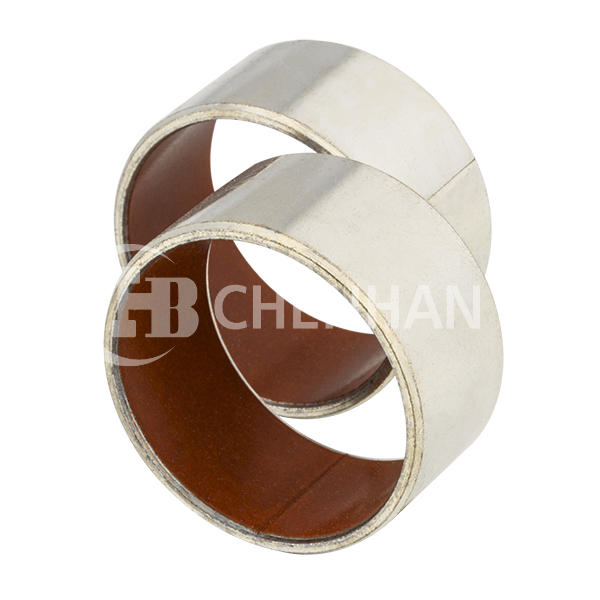

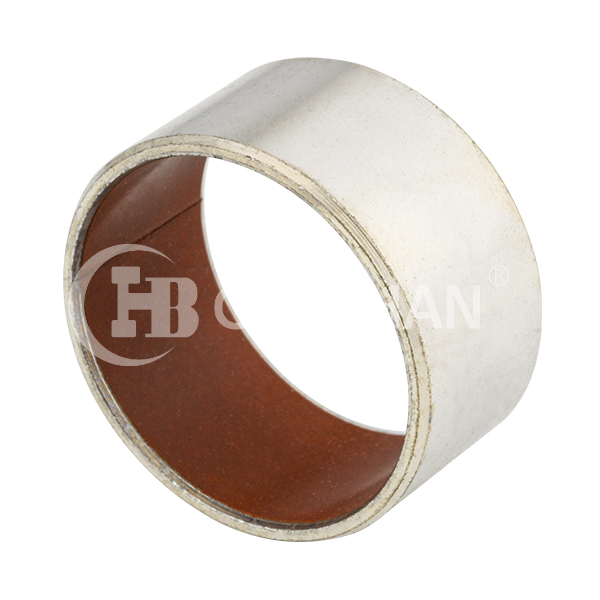

CHB-1D Hydraulic special bearings
CHB-1D Hydraulic special bearing. It is a new material designed on the basis of CHB-1P in combination with the working principle of the oil cylinder and shock absorber. It is especially suitable for high-reciprocity occasions with frequent reciprocations. Its performance is similar to foreign DP4. At present, this product gradually replaces CHB-1P products.
Size download
| Performance | Data | |
| Maximum load | Static load | 250N/mm2 |
| Dynamic load | 140N/mm2 | |
Line speed |
Dry friction | 2.5m/s |
| Oil lubrication | 5.0m/s | |
| Maximum PV value | Dry friction | 3.8N/mm2?m/s |
| Oil lubrication | 50N/mm2?m/s | |
| Coefficient of friction | 0.04~0.20 | |
| Operating temperature | -195℃～+280℃ |
|
| Thermal Conductivity | 42W/m?K |
|
Note: The products in the figure can also choose different base materials according to different working conditions.
Agricultural machinery: tractors, combine harvesters, etc .;
Automotive industry: power steering pumps, door hinges, etc .;
Office and business machinery: photocopiers, mail processors, etc ；
Hydraulic components and valves: gear pump, plunger pump, vane pump, other hydraulic components, etc .;
Household appliances: refrigerators, air conditioners, and fitness equipment;
And other logistics machinery, packaging machinery, various types of construction machinery and equipment.
CHB-2 The surface polymer is resistant to chemical corrosion and can effectively prevent atmospheric corrosion.
1)Running-in" phase: the surface layer of PTFE mixture wears the material faster. As shown by the curve I in the figure.
2） "Stable" wear stage: The friction after running-in becomes friction between PTFE, as shown by the curve in zone II in the figure.
3）"Absolute" wear stage: PTFE lubricant in the pores of the porous layer is consumed until the 70% bronze is exposed and the CHB-1 life is nearing its end. As shown in the III curve in the figure.
1) Influence of PV value
PV value is an effective indicator for determining the life of CHB-1. It is required to extend the life, and the PV value must be reduced.
2) Influence of ambient temperature
The higher the ambient temperature, the shorter the service life of CHB-1.。 3) Impact on the pieces
When the roughness of the shaft used by the counterpart is within the range of 0.4 ~ 0.63, the service life of the CHB-1 bearing can be significantly improved.
In addition to the standard products in the catalog, customers can also be ordered on request.
CHB-1 Oil-free lubricated bearings are based on steel plates.
CHB-1T Gear oil pump special bearings are made of CHB-1X material.
CHB-1P Reciprocating motion, made of CHB-1X
CHB-1W Lead-free bearings are a new product developed./p>
CHB-1D Hydraulic special bearings are designed on the basis of CHB-1P
CHB-1B Bronze-based bearings are based on tin bronze.
CHB-1S Stainless steel rigid corrosion-resistant bearings are based on stainless steel.
