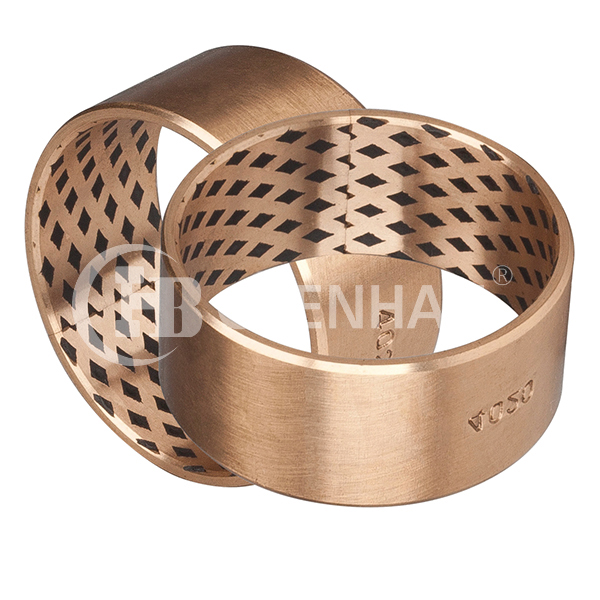

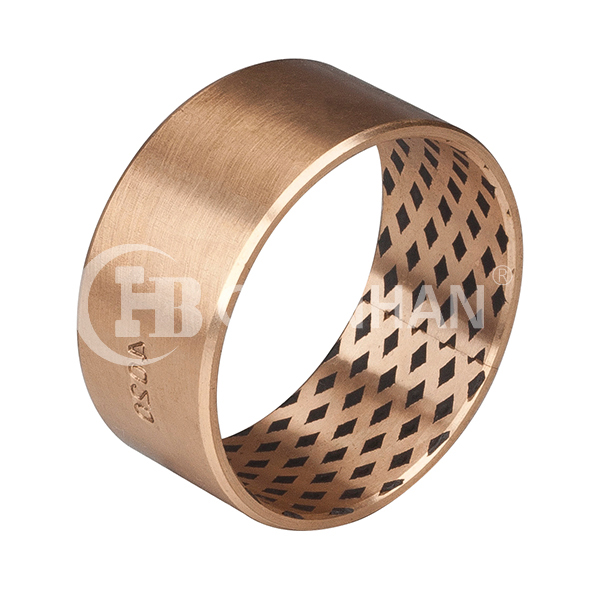

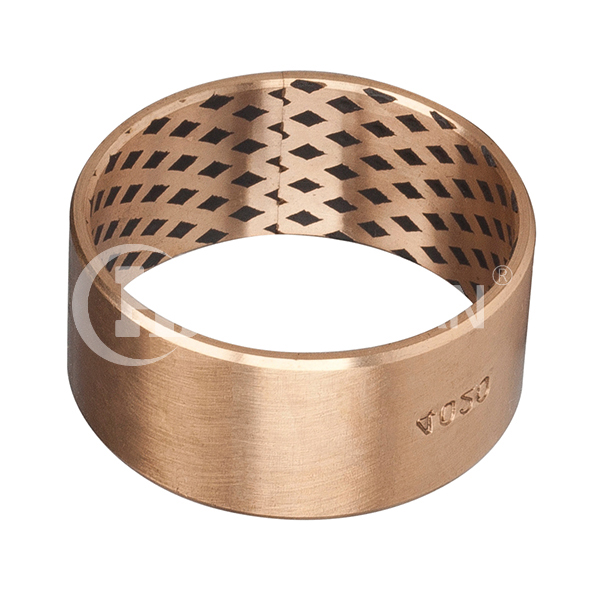

CHB09G Bronze solid lubricating bearings
CHB09G bronze solid lubricating bearing is based on bronze material. The product is used in automobile transmission shafts as wear-resistant bushings. It can also be used in other occasions without oil lubrication.
Size download
| Performance | Data | |
| Maximum load | Static load | 120N/mm2 |
| Dynamic load | 40N/mm2 | |
| Sliding speed | 2.5m/s | |
| Maximum PV value | 2.8N/mm2 ?m/s | |
| Coefficient of friction | 0.05~0.25 | |
| Operating temperature | -100℃~+200℃ | |
| Thermal Conductivity | 60Wim?K | |
| Thermal expansion coefficient | 15×-6/K | |
| Standard diameter Standard Dia. |
Bushing outer diameter O.D.Size |
Matching seat hole Housing Bore |
Bushing ID I.D.Size |
Matching shaft diameter Matching Shaft Diameter |
|---|---|---|---|---|
| 10~18 | +0.065 +0.030 |
+0.018 0 |
+0.046 0 |
- 0.016 - 0.043 |
| 18~30 | +0.075 +0.035 |
+0.021 0 |
+0.052 0 |
- 0.020 - 0.020 |
| 30~50 | +0.085 +0.045 |
+0.025 0 |
+0.062 0 |
- 0.025 - 0.064 |
| 50~80 | +0.100 +0.055 |
+0.030 0 |
+0.074 0 |
- 0.030 - 0.076 |
| 80~120 | +0.120 +0.070 |
+0.035 0 |
+0.087 0 |
- 0.036 - 0.090 |
| 120~180 | +0.170 +0.100 |
+0.400 0 |
+0.100 0 |
- 0.043 - 0.106 |
| 180~250 | +0.210 +0.130 |
+0.046 0 |
+0.115 0 |
- 0.050 - 0.122 |
| 250~315 | +0.260 +0.170 |
+0.052 0 |
+0.130 0 |
- 0.056 - 0.137 |
